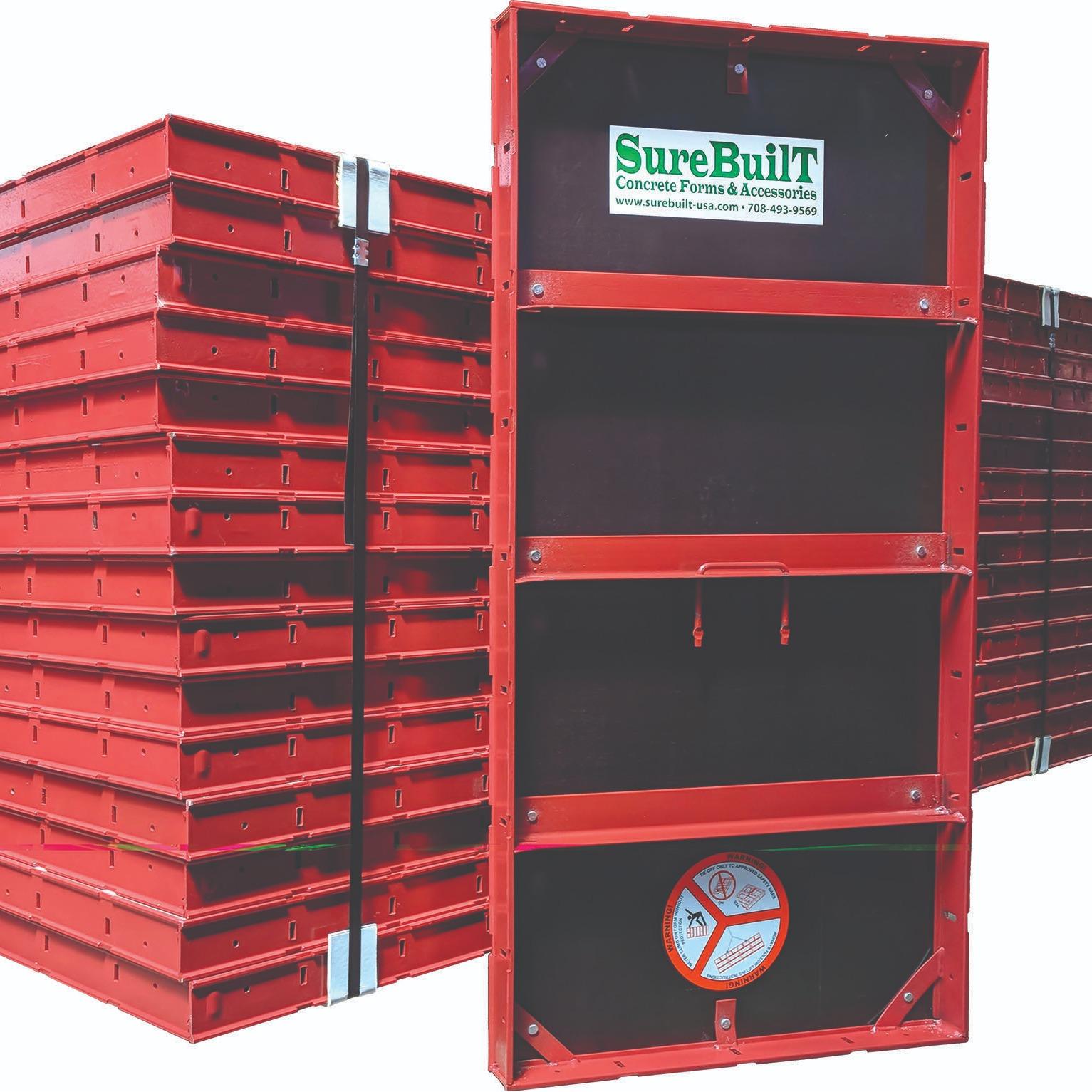

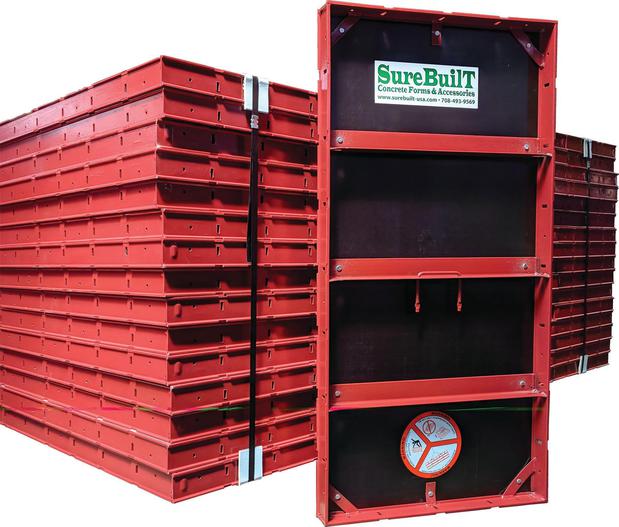

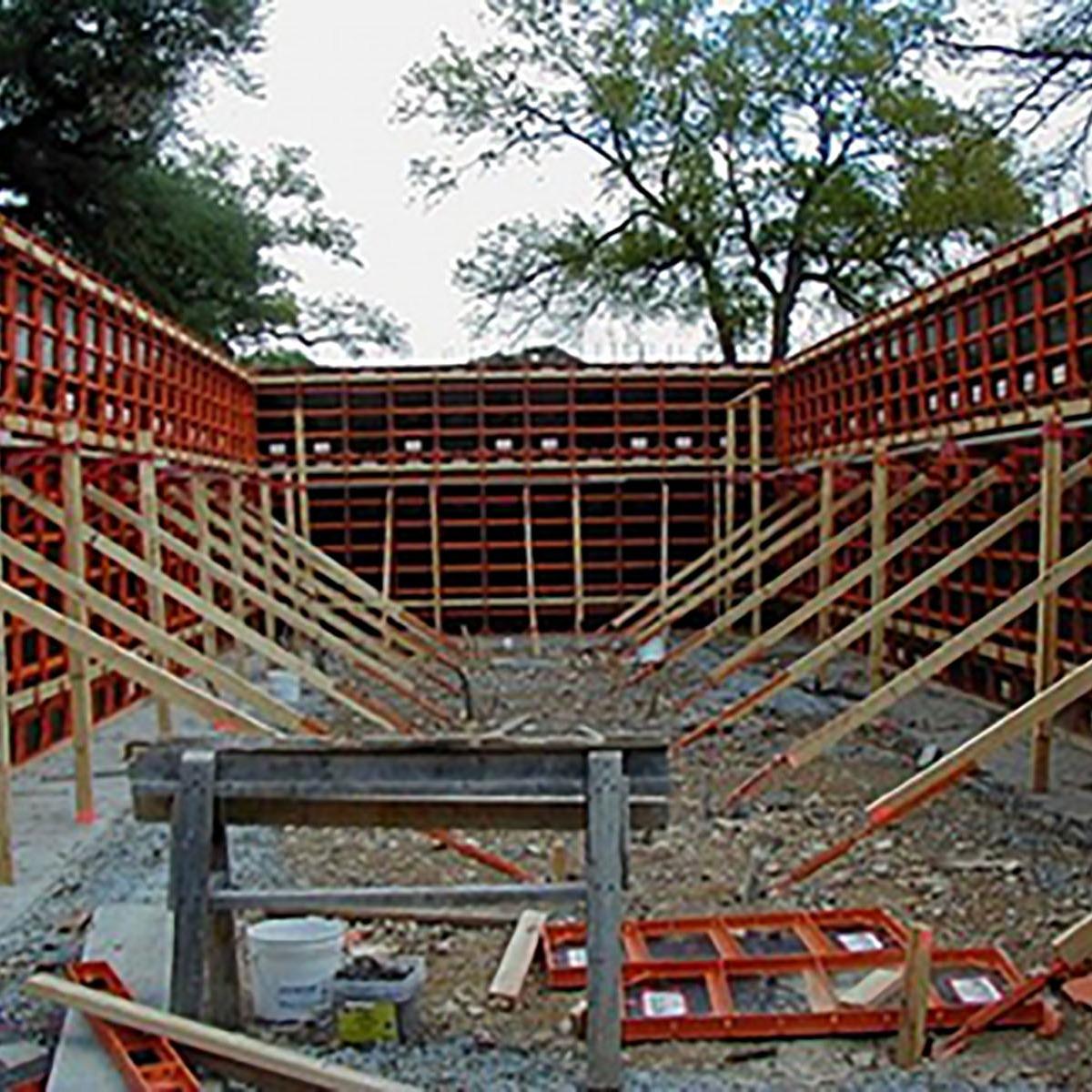

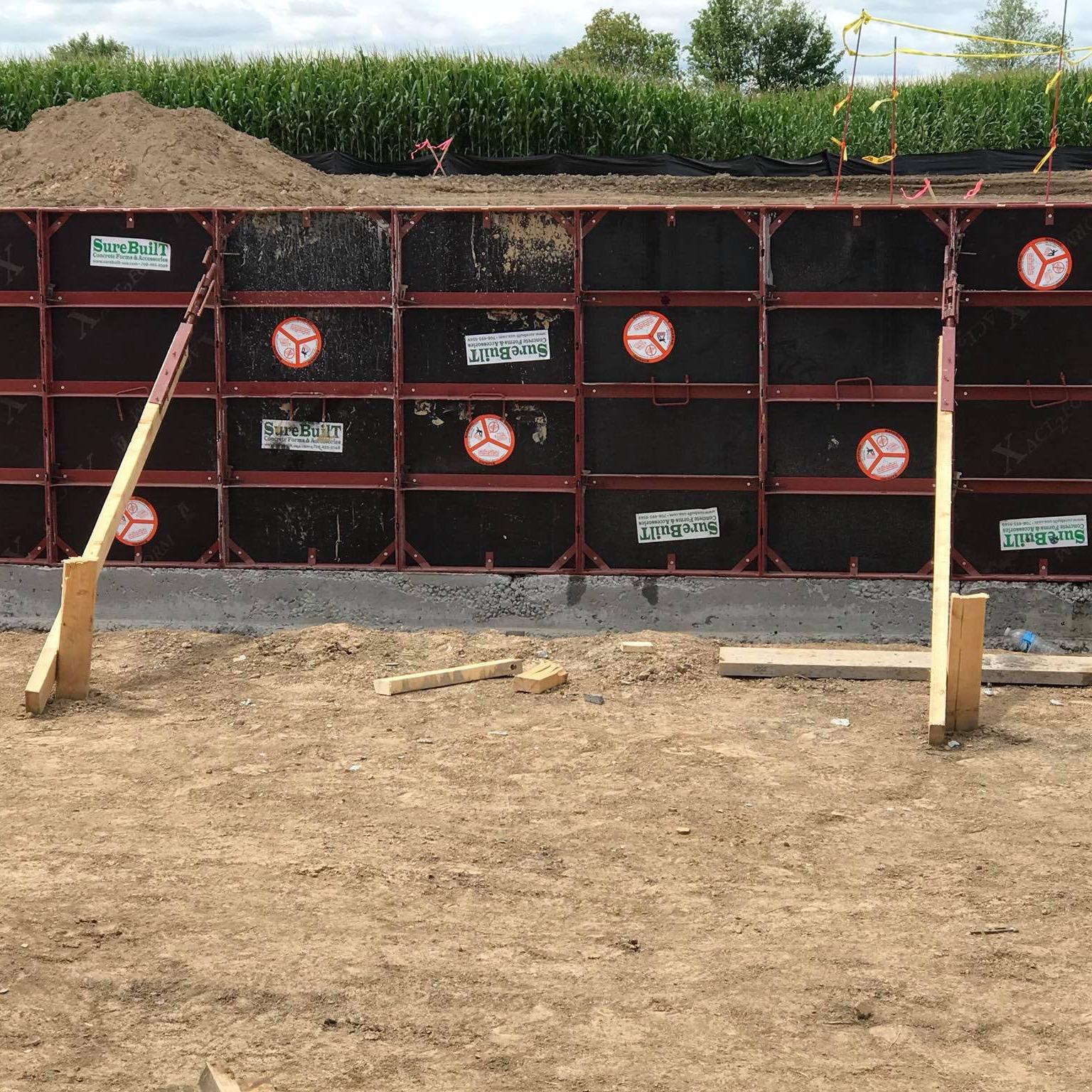

  SurePly Forming System

  The most economical, versatile and efficient way to form concrete! Two 2x8 panels are equal to the contact area of a 4x8 sheet of plywood, yet this forming system can be moved, placed, tied, poured and stripped 75% faster than job-built plywood forms. All types of concrete forming projects will benefit from these SurePly Forming System features: - High-carbon 55,000 PSI structural steel frame - Rugged frame with 45% more weld than others - Full 2”x2” cross member support angle every foot - Allowable 1,000 psf load-rated system - Added dado slots make step footings easy - Integral handle for carrying and setting - Baked-on powder paint in 12 optional colors - Long-lasting 1/2” Birch or optional HDO plywood - Panels in heights from 3’ to 10’, width 24” - Fillers in heights from 3’ to 10’, widths 1” to 22” - Simple hardware for faster assembly

  Link: SurePly Forming System

•

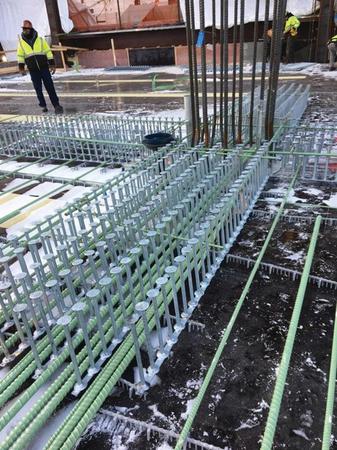

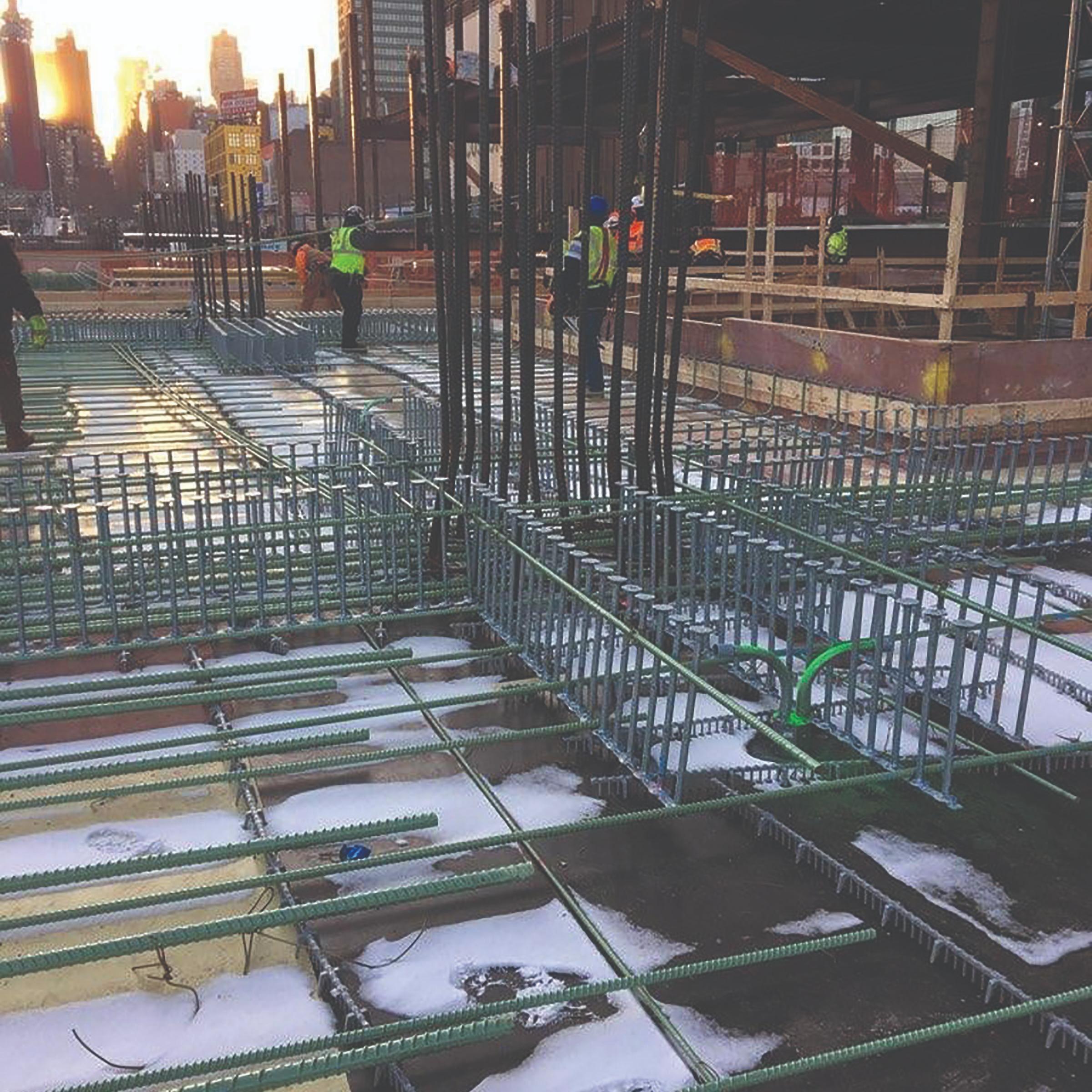

  Stud Rail Reinforcement

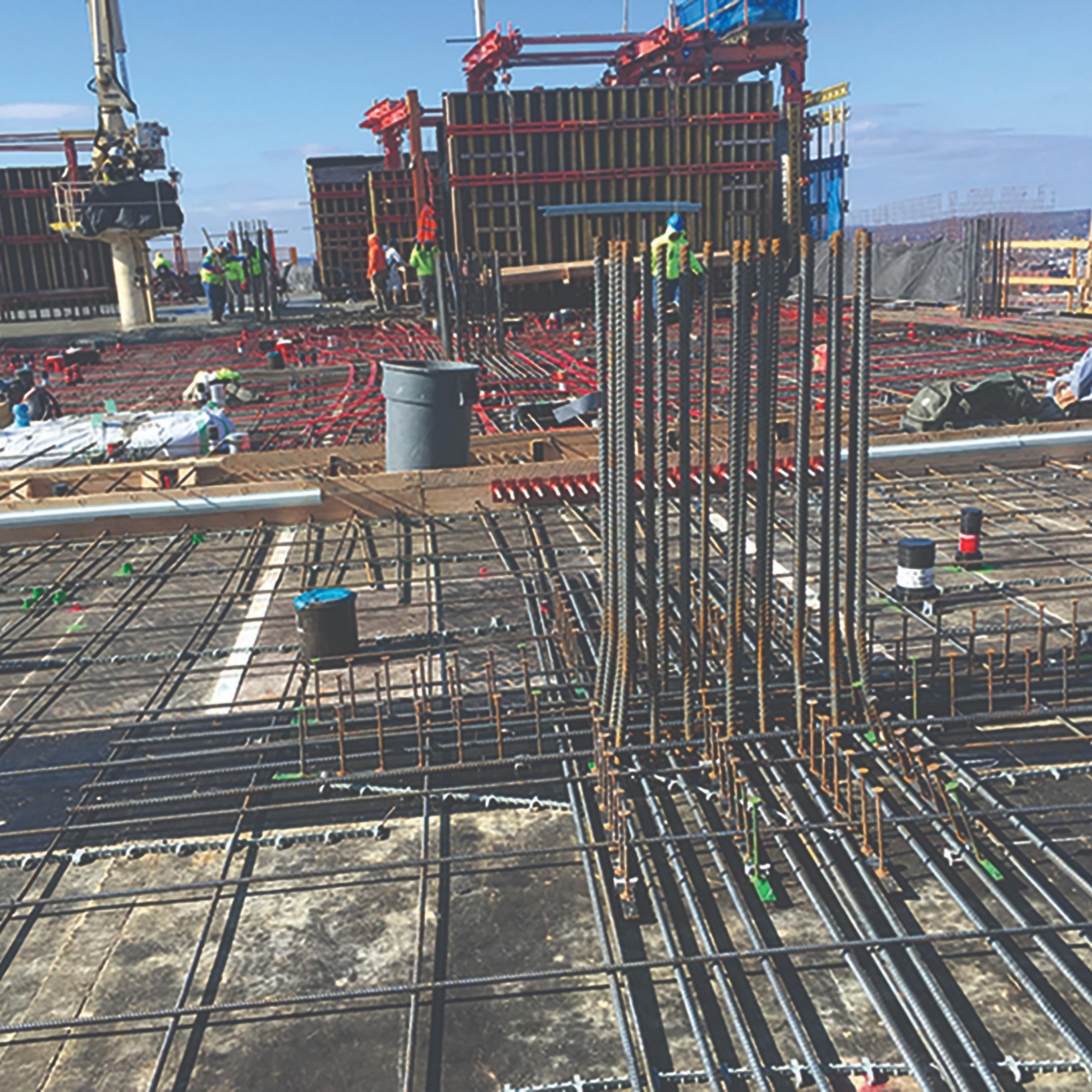

  A double-headed stud anchor (DSA) reinforcement system! The system is designed to transfer the load further into the concrete deck, create a larger shear area around the column, and resist punching shear forces. Using Stud Rail system can eliminate the need for forming column capitals or drop heads. This provides labor savings, since these column details are difficult to form and place. Each stud is double-headed so the load transfer is equal at the top and bottom of the assembly. Studs are available in different sizes to match the engineered project loads. The Stud Rail assembly is available with a bottom strap or optional top wire, allowing the contractor to determine the installation sequence. The assembly can be positioned before or after structural reinforcement and/or post-tension tendons are placed.

  Link: Stud Rail Reinforcement

•

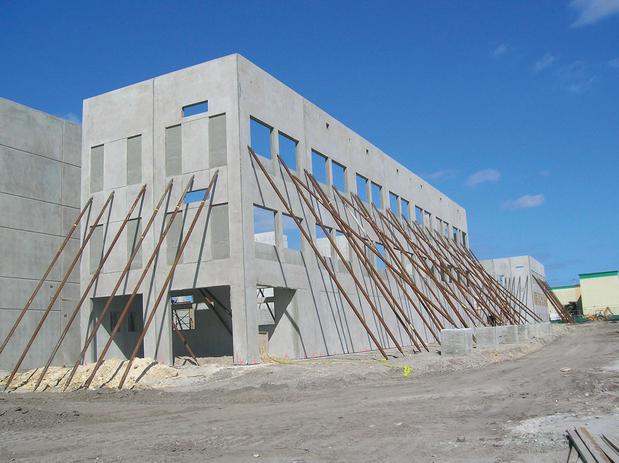

  Tilt-Up Concrete Hardware

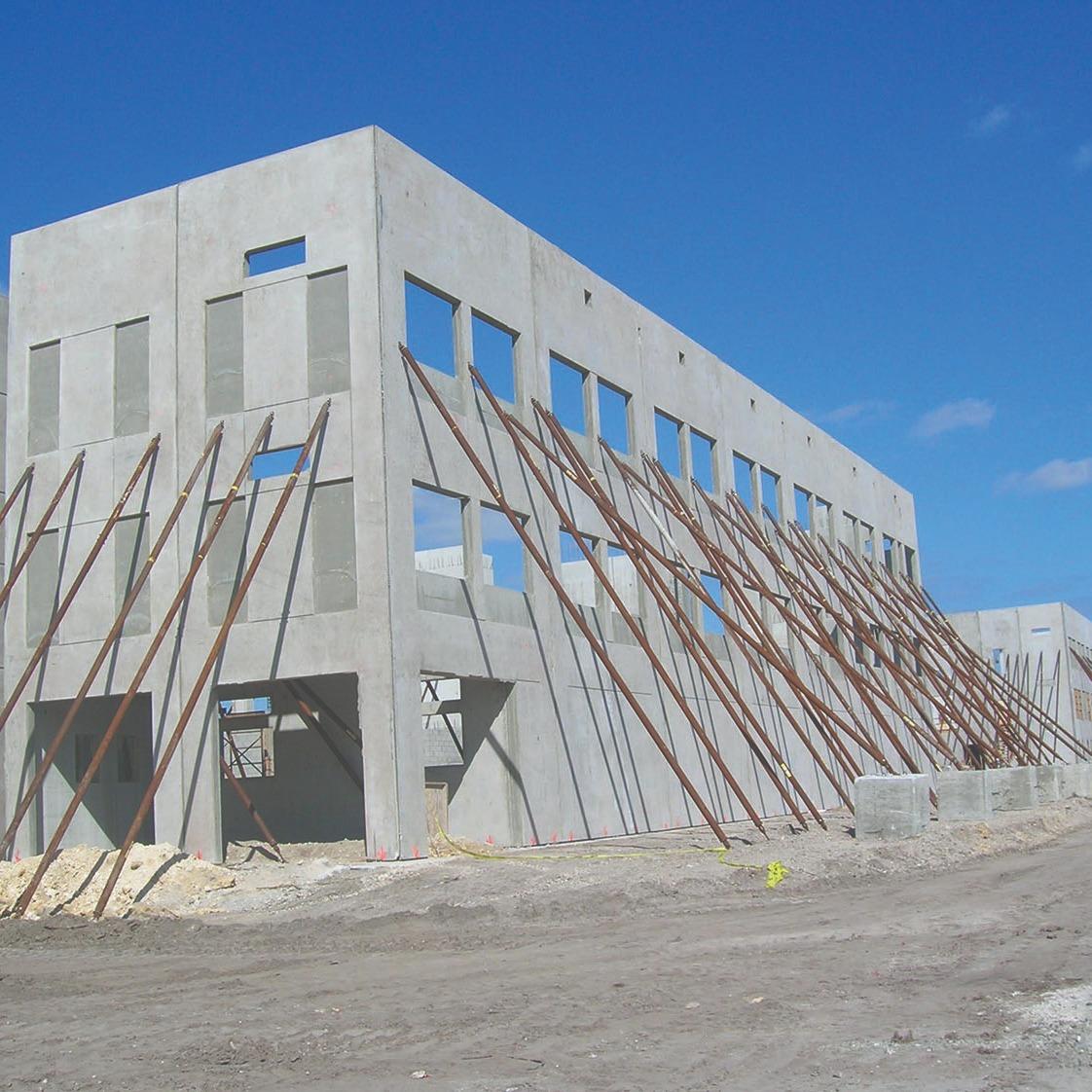

  A start-to-finish system of inserts, lifting and bracing! A tilt-up concrete panel is formed on the construction site, lifted into position, and braced until the structure is completed. Each panel requires inserts and lifting hardware depending on the specific design and application, including: SureLift Insert - An effective lifting insert with disposable former and adjustable plastic feet for height adjustment. Brace Bolt Insert - Panel insert with non-rusting plastic feet, plastic locator plug and bolt for subsequent brace attachment. Slant Anchor - Unique anchor provides simple panel-to-foundation connection without welding or bolting. Lifter - Ring-Lift design, available in 2.5, 5.0 or 10.0 ton capacities, rotates through the lifting insert to handle and position the panel. HGA Bracket - Load-rated device for quickly connecting tilt-up pipe brace shoes to helical ground anchors.

  Link: Tilt-Up Concrete Hardware
